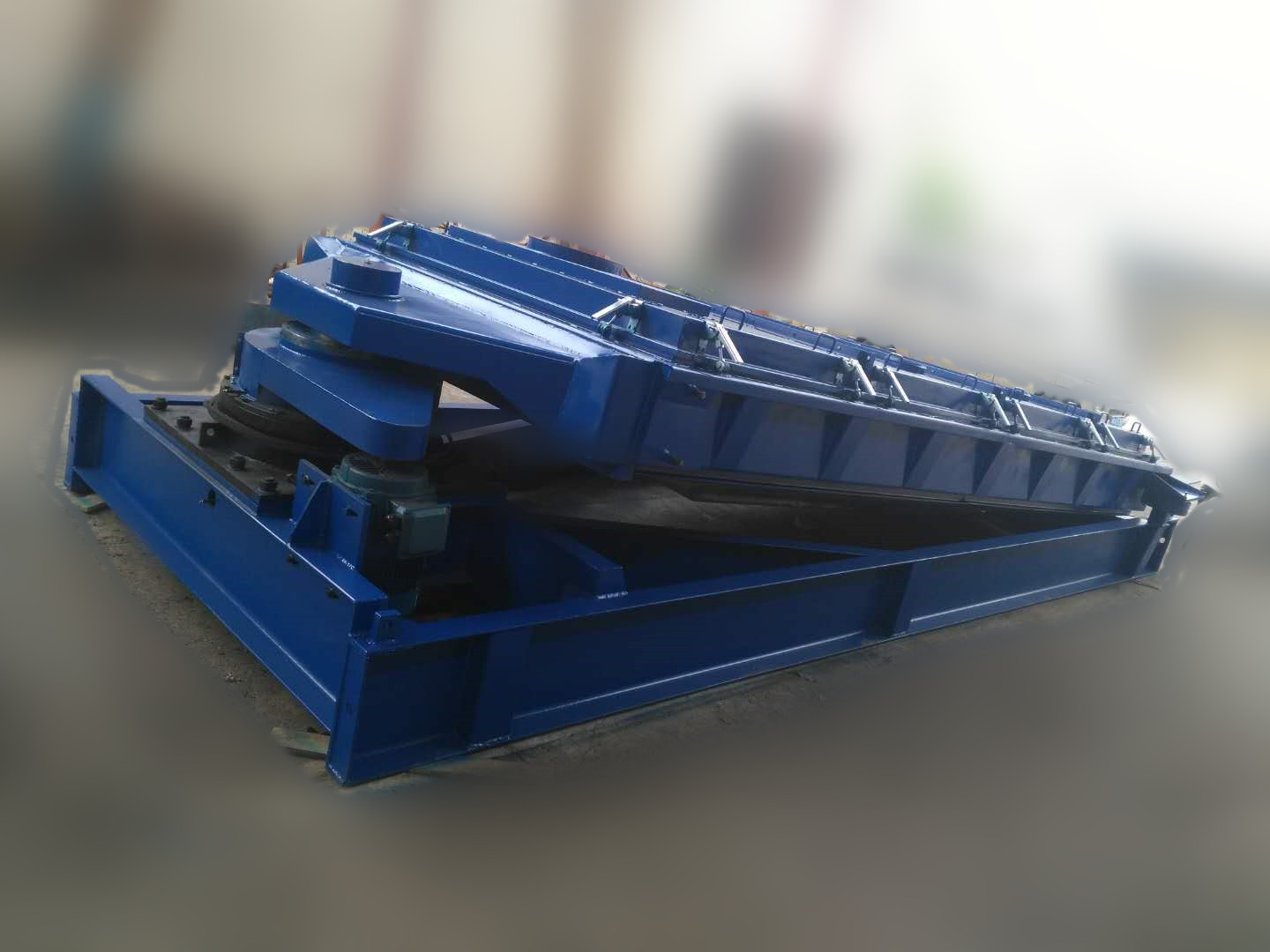

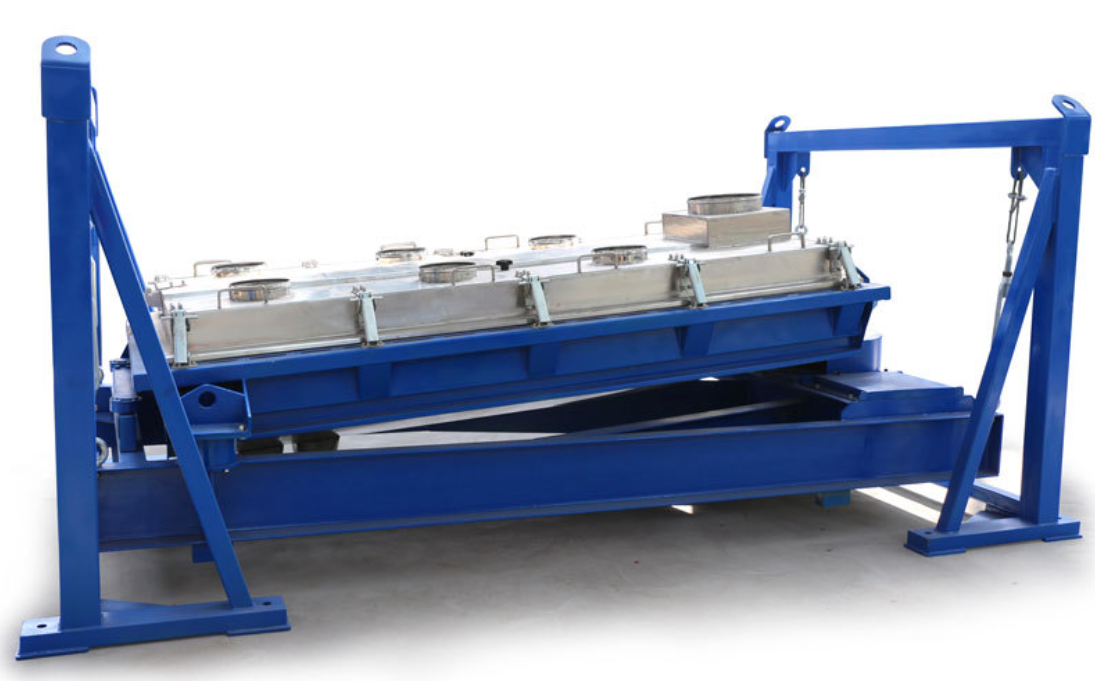

Gyratory screen

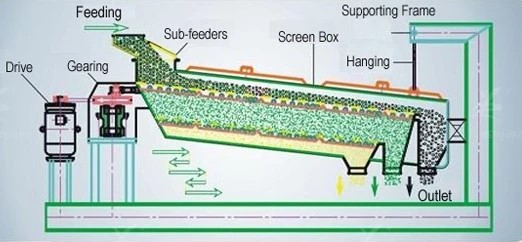

WorkingPrinciple

Circular motion at the feeding end.

1. spreads the raw material across thefull width of the screen surface

2. stratifies the raw material

3. conveys material forward

Then changing to elliptical motion at themiddle section.

1. long stroke elliptical actionscreening

2. enhances stratification

3. conveys material at high capacity

Finally straight line motion at thedischarge end.

1. linear sifting motion

2. removes near-size particles

3. improves screening efficiency

4. no vertical component ensures rawmaterial is in constant contact with the screen surface.

Features

1. Efficient machine: This machinecombines the circular, elliptical and reciprocating linear movement, andinstalls surface cleaning device, so this machine can reach to high production,high efficiency and low consumption.

2. Silent machine: Adopt special balancemode (provided with an eccentric hammer), the inertial force in all directionswere balanced perfectly when screening, little shake, low noise, smoothoperation.

3. Sealed machine: Main components adoptmechanical bending, riveting, welding, well sealing performance.

4. Smooth transmission machine: Adoptbelt to drive, smooth transmission, stable and reliable, low noise, easy toinstall and maintain.

5. Beautiful apperance machine: Compactstructure, neat and beautiful.

Technical data

1. It can be specially designed accordingto customer needs.Remark：

2. The product pictures, models, data,functions, performance and specifications of the website are for referenceonly. The company may improve the above contents.Please refer to the product object andproduct manual for specific information.
