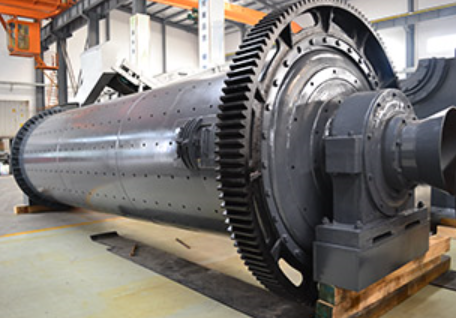

MQ Series Ball Mill
Features
1.Traditional sliding bearings arereplaced by double row roller bearings in small and medium size ball mills toreduce energy consuming
2.Large ball mills adopt pitot pressureor hydrostatic bearings.
3.Air clutch system for starting the motorsafely
4.Alternative synchronous or asynchronousmotor
5.Low speed driving unit with Liftingdevice, convenient for maintenance.
6.New Endurable wearing parts to increaseservice life of vulnerable parts.
7.Alternative PLC automatic controlsystem Optional Accessories ( drum sieve, Hydraulic wrench mobile feedingsettings)
Technical data
Technical Specification of Overflow BallMill
Model | Shell Size D×L(mm) | E-Volume (m3) | Ball Quanity (t) | Rotate Speed (r/min) | Power (kw) | Output size (mm) | Capaicty (t/h) | Remark | Weight（T) |
MQY2122 | 2100×2200 | 6.7 | 14.7 | 23.8 | 160 | 0.8-0.074 | 22-5.0 | 380V | 42.9- 46.5 |
MQY2130 | 2100×3000 | 9.2 | 17 | 23.8 | 185 | 0.8-0.074 | 25-5.8 | 380V | 48 |
MQY2136 | 2100×3600 | 11 | 19 | 23.8 | 210 | 0.8-0.074 | 28-6.0 | 380V | 49.9 |
MQY2430 | 2400×3000 | 12.2 | 23 | 22.8 | 250 | 0.8-0.074 | 34-6.6 | 380V | 59.68 |
MQY2436 | 2400×3600 | 14.6 | 25 | 22.8 | 280 | 0.8-0.074 | 40.5-7.9 | 380V | 62.9 |
MQY2445 | 2400×4500 | 18.2 | 31 | 22.8 | 355 | 0.8-0.074 | 50-9.8 | 380V | 63.5 |
MQY2721 | 2700×2100 | 10.7 | 20 | 21.7 | 280 | 3.0-0.074 | 76-6.0 | 6-10KV | 66.7 |
MQY2730 | 2700×3000 | 15.3 | 28 | 21.7 | 355 | 3.0-0.074 | 108-8.8 | 6-10KV | 81.8 |
MQY2736 | 2700×3600 | 18.4 | 34 | 21.7 | 355-400 | 3.0-0.074 | 130-10.5 | 6-10KV | 83.5 |
MQY2740 | 2700×4000 | 20.5 | 37 | 21.7 | 400-450 | 3.0-0.074 | 144-11.5 | 6-10KV | 87.6 |
MQY2745 | 2700×4500 | 23 | 42.5 | 21.7 | 500 | 3.0-0.074 | 180-13 | 6-10KV | 127 |
MQY3231 | 3200×3100 | 22.65 | 22.65 | 18.6 | 450 | 3.0-0.074 | 164-14.4 | 6-10KV | 131 |
MQY3236 | 3200×3600 | 26.2 | 26.2 | 18.8 | 500 | 3.0-0.074 | 171-17.1 | 6-10KV | 135 |
MQY3245 | 3200×4500 | 32.8 | 61 | 18.6 | 630 | 3.0-0.074 | 228-22 | 6-10KV | 148.7 |
MQY3254 | 3200×5400 | 39.3 | 73 | 18.6 | 710 | 3.0-0.074 | 270-20 | 6-10KV | 165 |
MQY3645 | 3600×4500 | 40.8 | 76 | 17.3 | 800- 1000 | 3.0-0.074 | 233-26 | 6-10KV | 180 |
MQY3650 | 3600×5000 | 45.3 | 86 | 17.3 | 1120 | 3.0-0.074 | 260-31.5 | 6-10KV | 200 |
MQY3660 | 3600×6000 | 102 | 102 | 17.3 | 1250 | 3.0-0.074 | 280-34 | 6-10KV | 240 |
MQY3685 | 3600×8500 | 79 | 131 | 17.3 | 1500 | 3.0-0.074 | 400-45 | 6-10KV | 280 |
MQY4564 | 4500×6400 | 85 | 174 | 14.54 | 2000 | 3.0-0.074 | 158 | 6-10KV | 285 |
MQY4570 | 4500×7000 | 111 | 190 | 15.6 | 2500 | 3.0-0.074 | 200 | 6-10KV | 350 |
MQY5080 | 5030×8000 | 145 | 240 | 14.2 | 3500 | 3.0-0.074 | 250 | 6-10KV | |
Note:The ball mill model can be customized according to demand. | |||||||||
Technical Specification of Grate Ball Mill
Model | Shell Size D×L(mm) | E-Volume (m3) | Ball Quanity (t) | Rotate Speed (r/min) | Power (kw) | Output size (mm) | Capaicty (t/h) | Remark | Weight（T) |
MQG2122 | 2100×2200 | 6.7 | 14.7 | 23.8 | 160 | 0.3-0.074 | 24-5.3 | 6-10KV | 43.2 |
MQG2130 | 2100×3000 | 9.2 | 17 | 23.8 | 185 | 0.3-0.074 | 26-6.0 | 6-10KV | 46.8 |
MQG2136 | 2100×3600 | 11 | 19 | 23.8 | 210 | 0.3-0.074 | 29-6.5 | 6-10KV | 49.1 |
MQG2430 | 2400×3000 | 12.2 | 25 | 22.8 | 250 | 0.3-0.074 | 38-7.5 | 6-10KV | 57.8 |
MQG2436 | 2400×3600 | 14.6 | 30 | 22.8 | 280 | 0.3-0.074 | 42-8.5 | 6-10KV | 60.8 |
MQG2445 | 2400×4500 | 18.2 | 37 | 22.8 | 400 | 0.3-0.074 | 55-10.5 | 6-10KV | 66.3 |
MQG2721 | 2700×2100 | 10.7 | 24 | 21.7 | 280 | 0.3-0.074 | 84-8.5 | 6-10KV | 66.4 |
MQG2730 | 2700×3000 | 15.3 | 32.5 | 21.7 | 355 | 0.3-0.074 | 120-10 | 6-10KV | 77.3 |
MQG2736 | 2700×3600 | 18.4 | 39 | 21.7 | 400 | 0.3-0.074 | 145-12 | 6-10KV | 82.4 |
MQG2740 | 2700×4000 | 20.5 | 43 | 21.7 | 450 | 0.3-0.074 | 159-13 | 6-10KV | 84.73 |
MQG2745 | 2700×4500 | 23 | 50 | 21.7 | 500 | 0.3-0.074 | 180-15 | 6-10KV | 89.1 |
MQG3231 | 3200×3100 | 22.65 | 46.9 | 18.6 | 500 | 0.3-0.074 | 182-16 | 6-10KV | 139 |
MQG3236 | 3200×3600 | 26.2 | 52 | 18.8 | 560 | 0.3-0.074 | 190-19 | 6-10KV | 143 |
MQG3245 | 3200×4500 | 32.8 | 65 | 18.6 | 710-800 | 0.3-0.074 | 235-29 | 6-10KV | 151 |
MQG3254 | 3200×5400 | 39.2 | 81.6 | 18.6 | 800-1000 | 0.3-0.074 | 280-35 | 6-10KV | 161 |
MQG3645 | 3600×4500 | 40.8 | 88 | 17.3 | 1000 | 0.3-0.074 | 259-29 | 6-10KV | 190 |
MQG3650 | 3600×5000 | 45.3 | 96 | 17.3 | 1120 | 0.3-0.074 | 288-35 | 6-10KV | 200 |
MQG3660 | 3600×6000 | 54.4 | 117 | 17.3 | 1250 | 0.3-0.074 | 310-38 | 6-10KV | 220 |
MQG3685 | 3600×8500 | 79 | 144 | 17.3 | 1800 | 0.3-0.074 | 450-50 | 6-10KV | 260 |
MQG4040 | 4000×4000 | 45 | 82 | 16.4 | 1000 | 0.3-0.074 | 230 | 6-10KV | 220 |
MQG4050 | 4000×5000 | 57 | 161 | 16.4 | 1250 | 0.3-0.074 | 270 | 6-10KV | 260 |
MQG4560 | 4500×6000 | 85 | 162 | 15.42 | 2000 | 0.3-0.074 | 285 | 6-10KV | 285 |
MQG5264 | 5200×6400 | 123 | 229 | 14.3 | 2×1600 | 0.3-0.074 | 320 | 6-10KV | 350 |
Note:The ball mill model can be customized according to demand. | |||||||||
