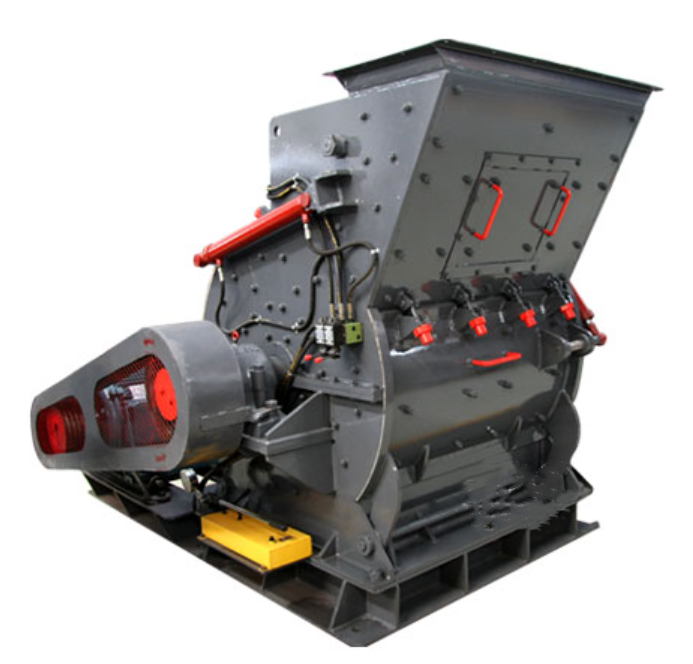

Hammer Mill
Working Principle
The main machine drives the spindlethrough the motor and the triangle belt, so that the rotor rotates. After thebulk material enters the crushing chamber from the inlet, it is broken by thehigh-speed plate hammer. Crushing to the required size of the material by thebottom grate directly discharged, does not meet the size requirements of thematerial is in the crushing chamber, the rotor on the board hammer and liningplate repeatedly broken, until the size of the required rear out. In order toavoid clogging, the water content of the crushed materials generally does notexceed 20%.
Features
1. High production capacity, highcrushing ratio.
2. Low power consumption, uniformparticle size.
3. Simple structure, easy to operate.
4. Low investment cost, easy management.
Technical data
Name & Model | HM4008-75 | HM4012-90 | HM4015-132 | |
Rotor diameter(mm) | 750 | 900 | 1150 | |
Rotor length(mm) | 800 | 1200 | 1500 | |
Rotor speed(rm) | 800-1000 | 800-1000 | 550-800 | |
Feeding size（mm） | 320×930 | 400×1200 | 500×1500 | |
Max feed size(mm) | <30 | <40 | <50 | |
Discharge size(mm) | 0-3 | 0-3 | 0-8 | |
Theory processing capacity(th) | 8-15 | 15-40 | 40-70 | |
Motor | Model（Standard） | Y280S-4 | Y280M-4 | Y315L2-6 |
Power(kw) | 75 | 90 | 132 | |
Rotate speed(rm) | ||||
Hammer number（pcs） | 18 | 32 | 32 | |
Dimension(L×W×Hmm) | 2130×1665×1610 | 2840×2100×2020 | 3720×2650×2540 | |
